  1. Export & Hand-off
  2. Code Export Platforms
  3. Web

Framer

This guide covers three methods: adding static Lottie animations, creating interactive Lotties with custom Framer interactions, and importing interactive Lotties with preserved Lottielab interactions.

PreviousWebflowNextWordpress

Last updated 3 months ago

Was this helpful?

Static Lottie in Framer

Add a non-interactive Lottie animation using Framer’s built-in tools.

  1. Use Framer’s Lottie component. Replace the source with a CDN link or uploaded Lottie file.

Interactive Lottie with Custom Interactions in Framer

Create an interactive Lottie with Framer-specific custom interactions.

  1. Open the Lottielab Plugin in Framer.

  2. Paste the Lottie JSON URL into the plugin.

  3. Access available states, wrap the Lottie in a Frame, and convert it to a component.

  4. Add custom interactions via Framer’s variants.

Pre-built Lottielab interactions in Framer

Import a Lottie with pre-built Lottielab interactions.

  1. Insert the Lottie JSON URL as the component’s source.

  2. Enjoy the interactive Lottie with preserved Lottielab interactions.

Note: Plans for v2 of the Lottielab Plugin will integrate "" into this workflow, simplifying the process.

Copy the Lottielab component and paste it into Framer. [Copy from here: ]

Lottielab Component
Import a Lottie with pre-built Lottielab interactions

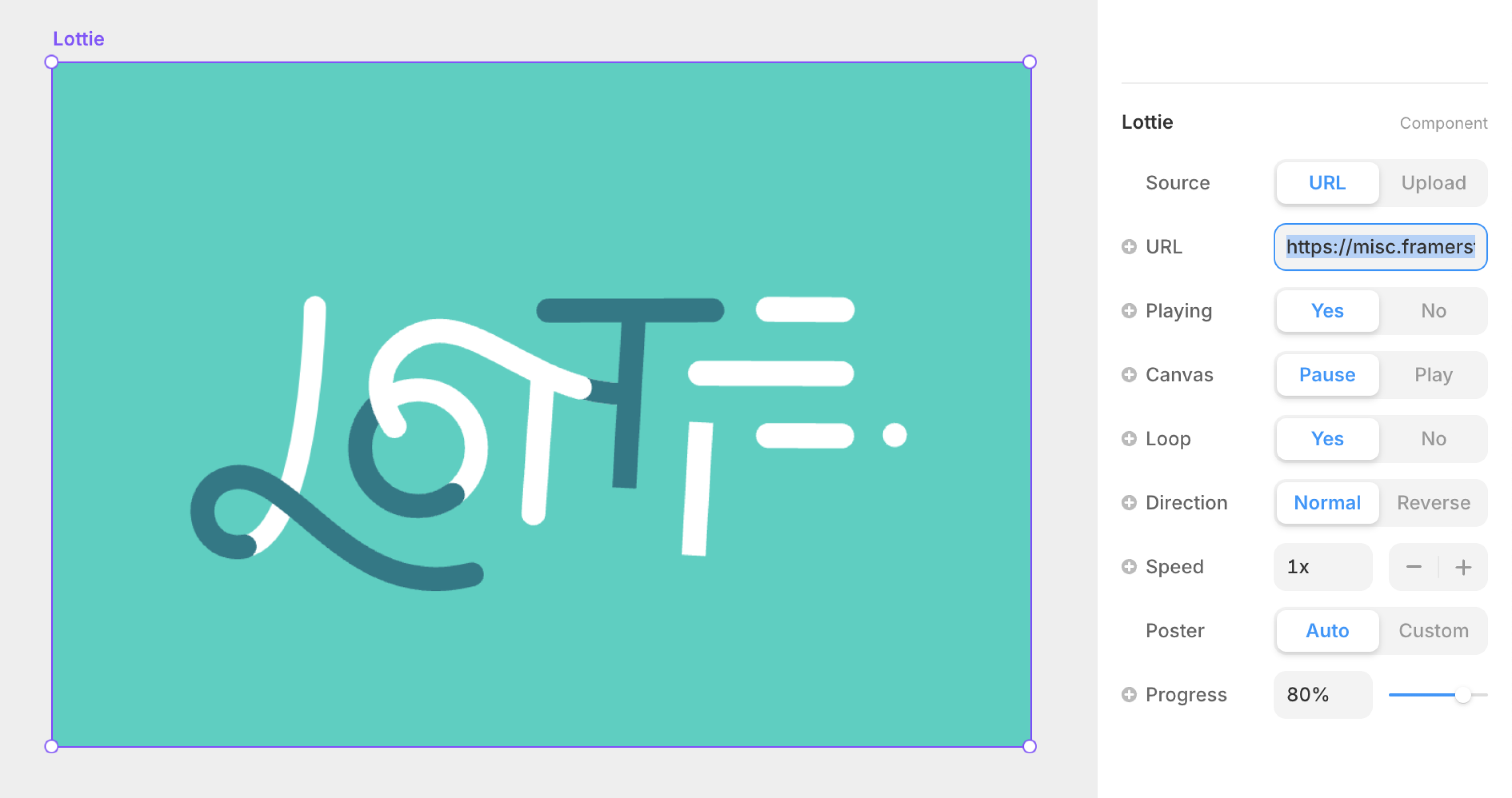

Default Lottie component in Framer.

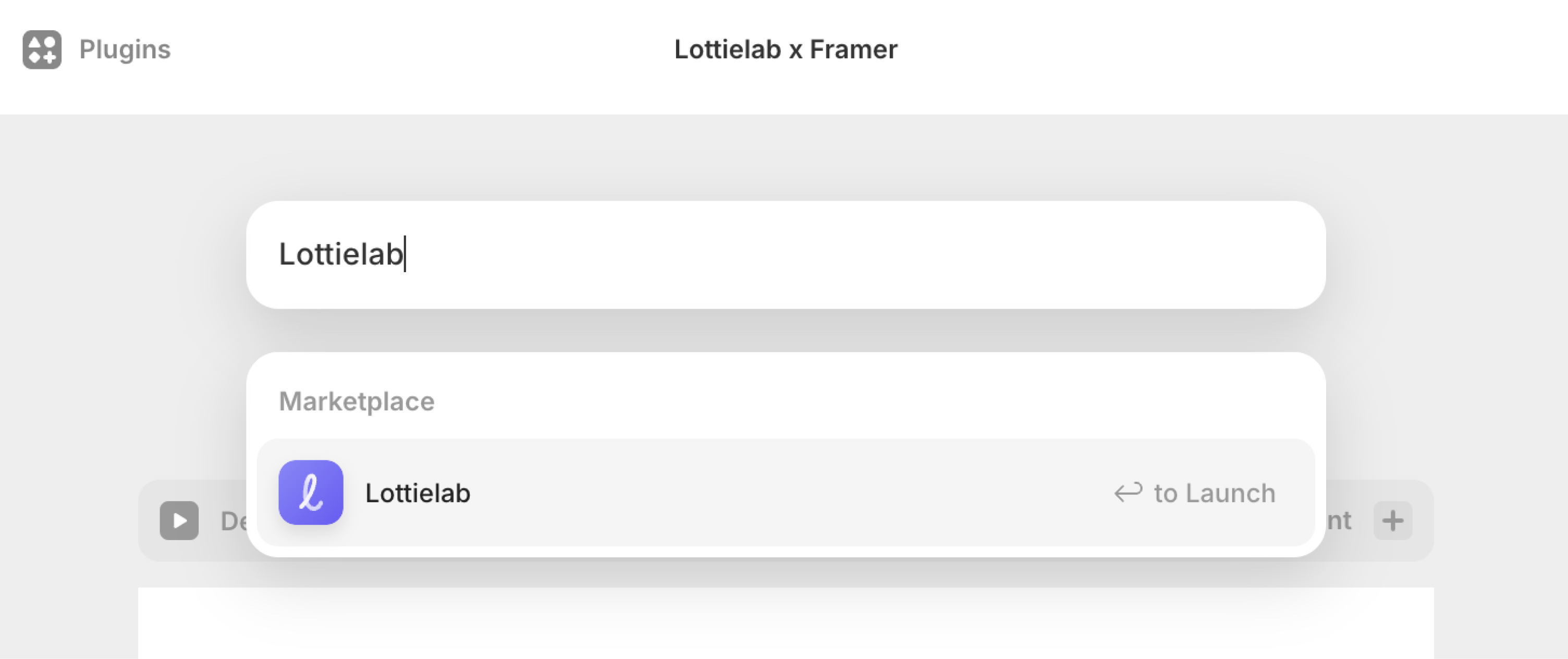

Searching for the Lottielab plugin in Framer.

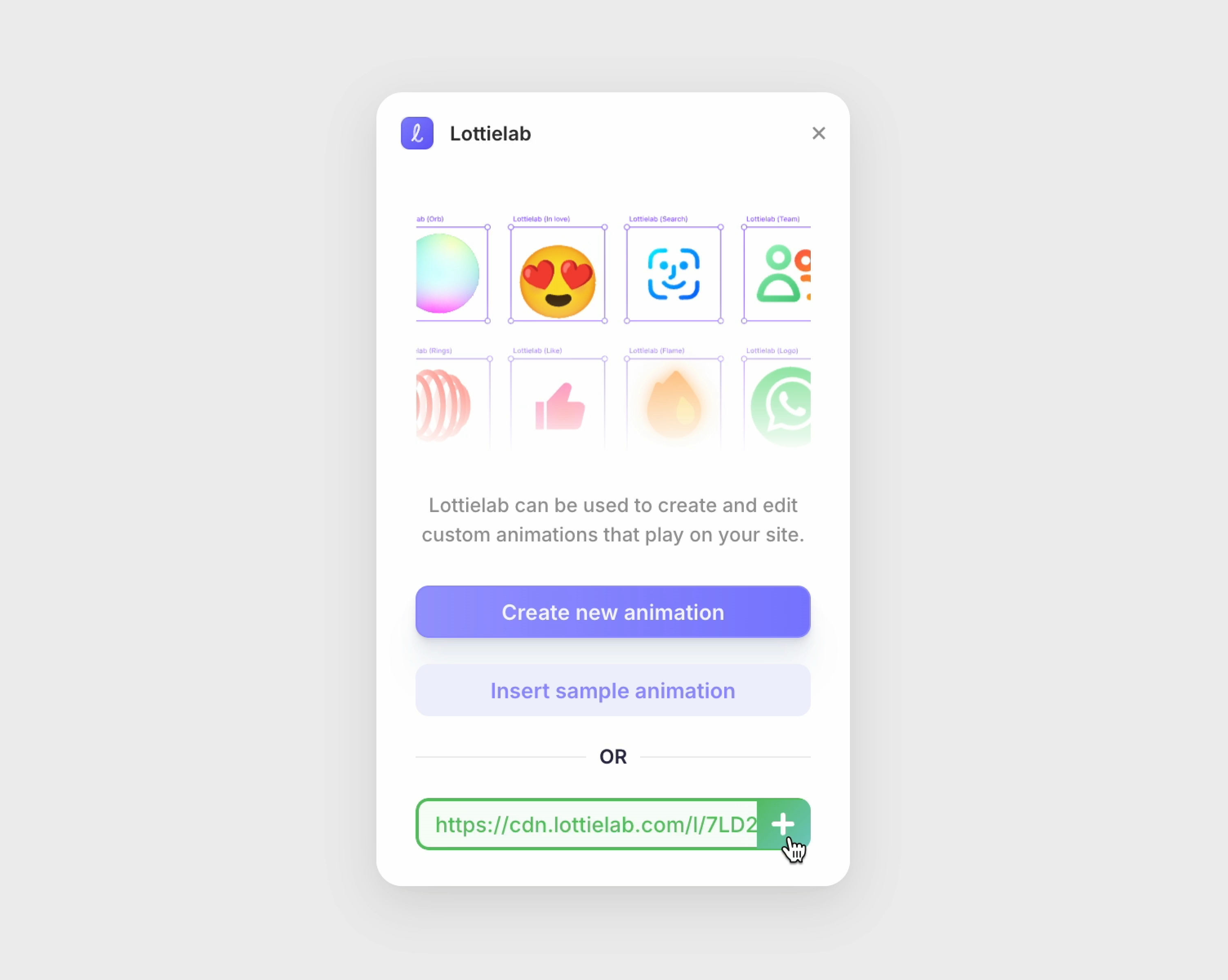

Pasted the JSON URL in the plugin.

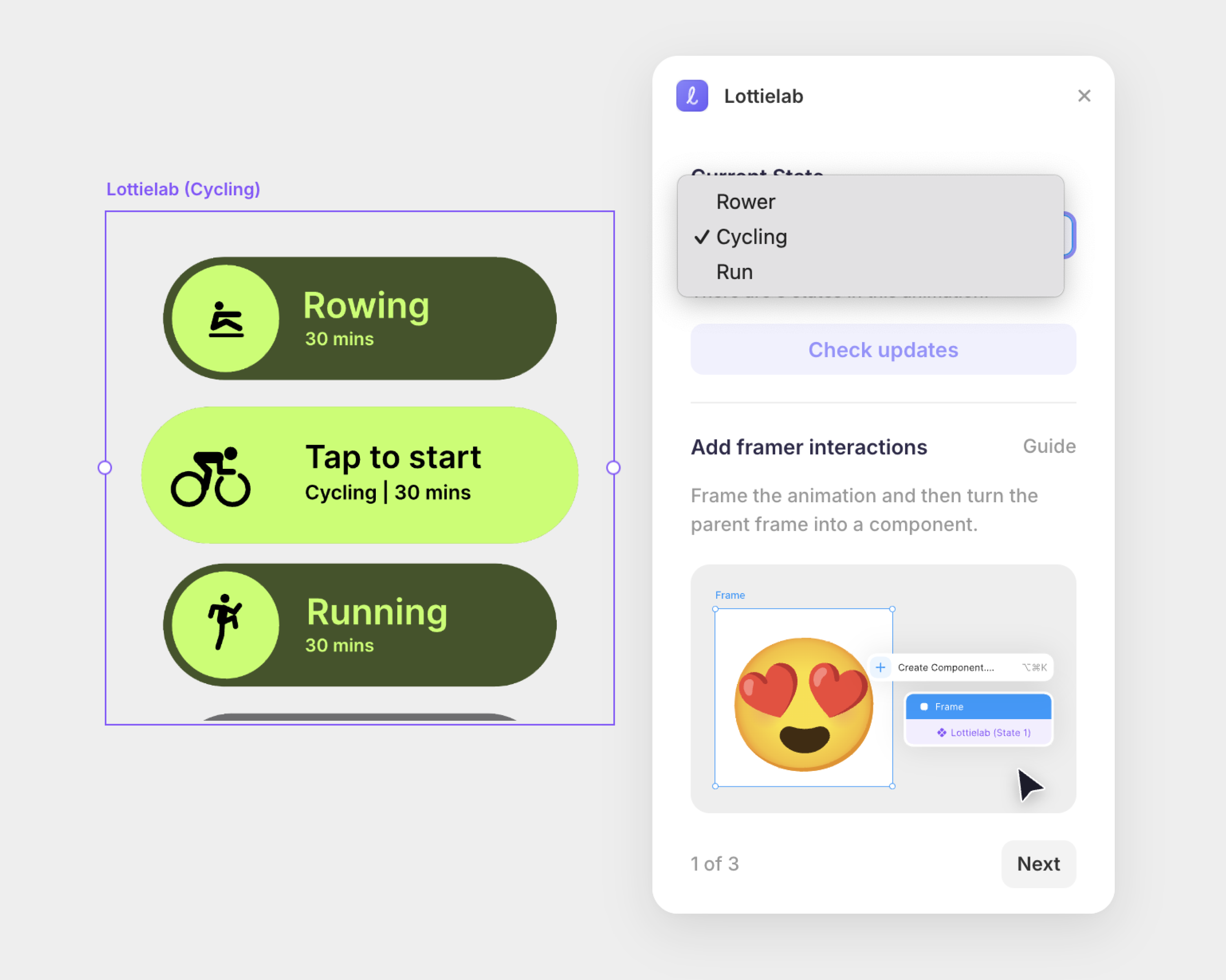

Viewing available states.

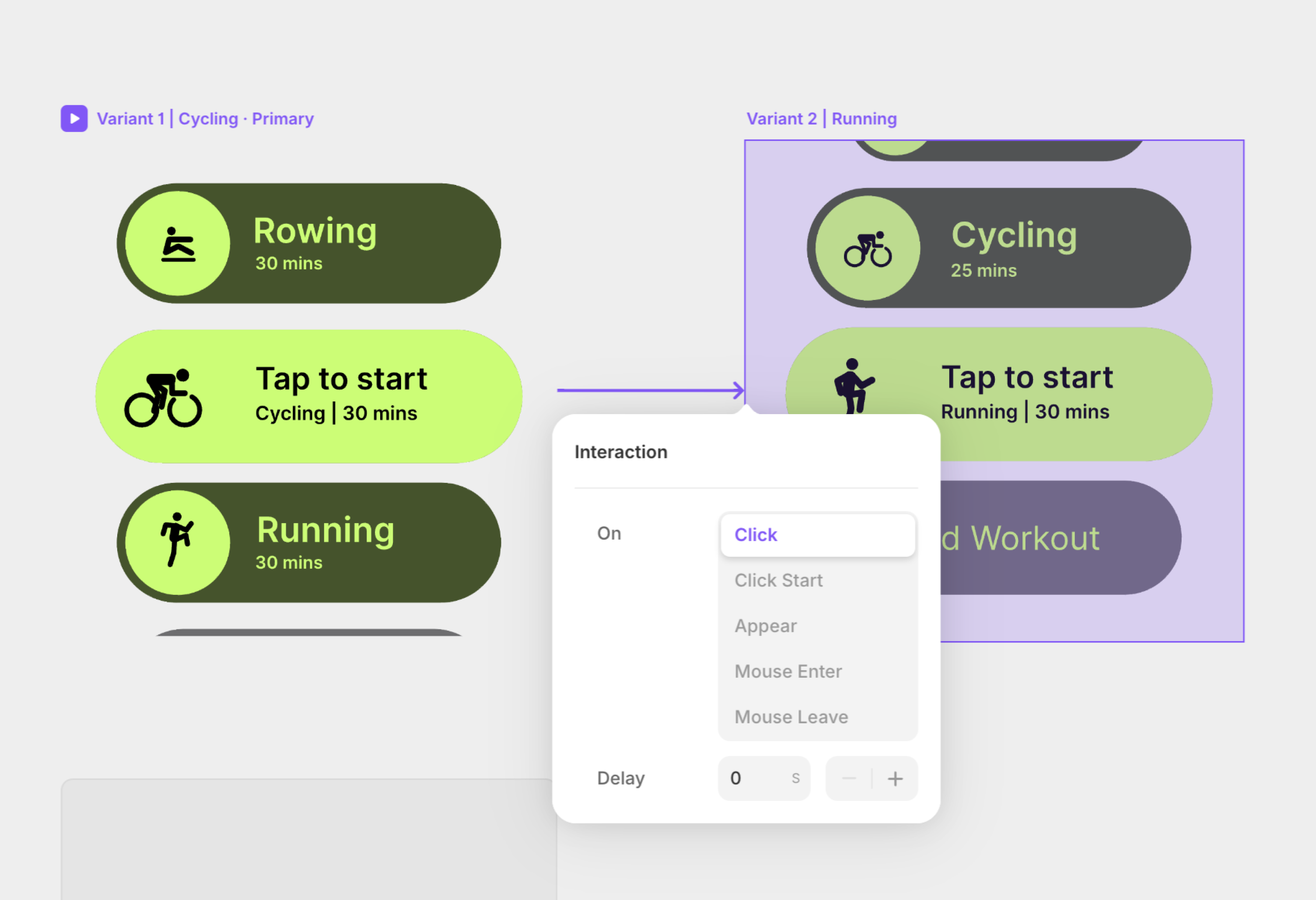

Setting Framer interactions after wrapping the Lottie in a Frame and converting it to a component.

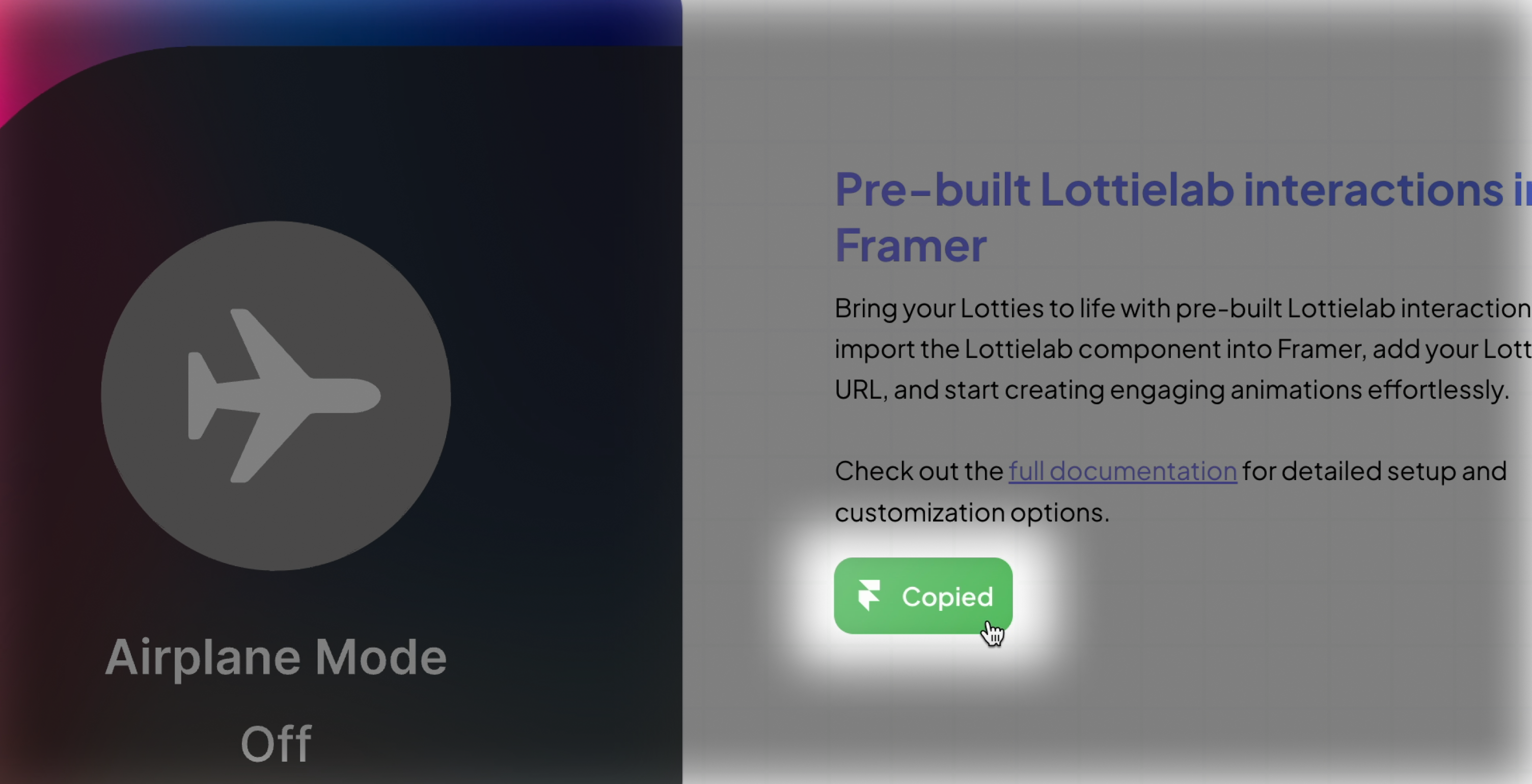

Copied the Framer component

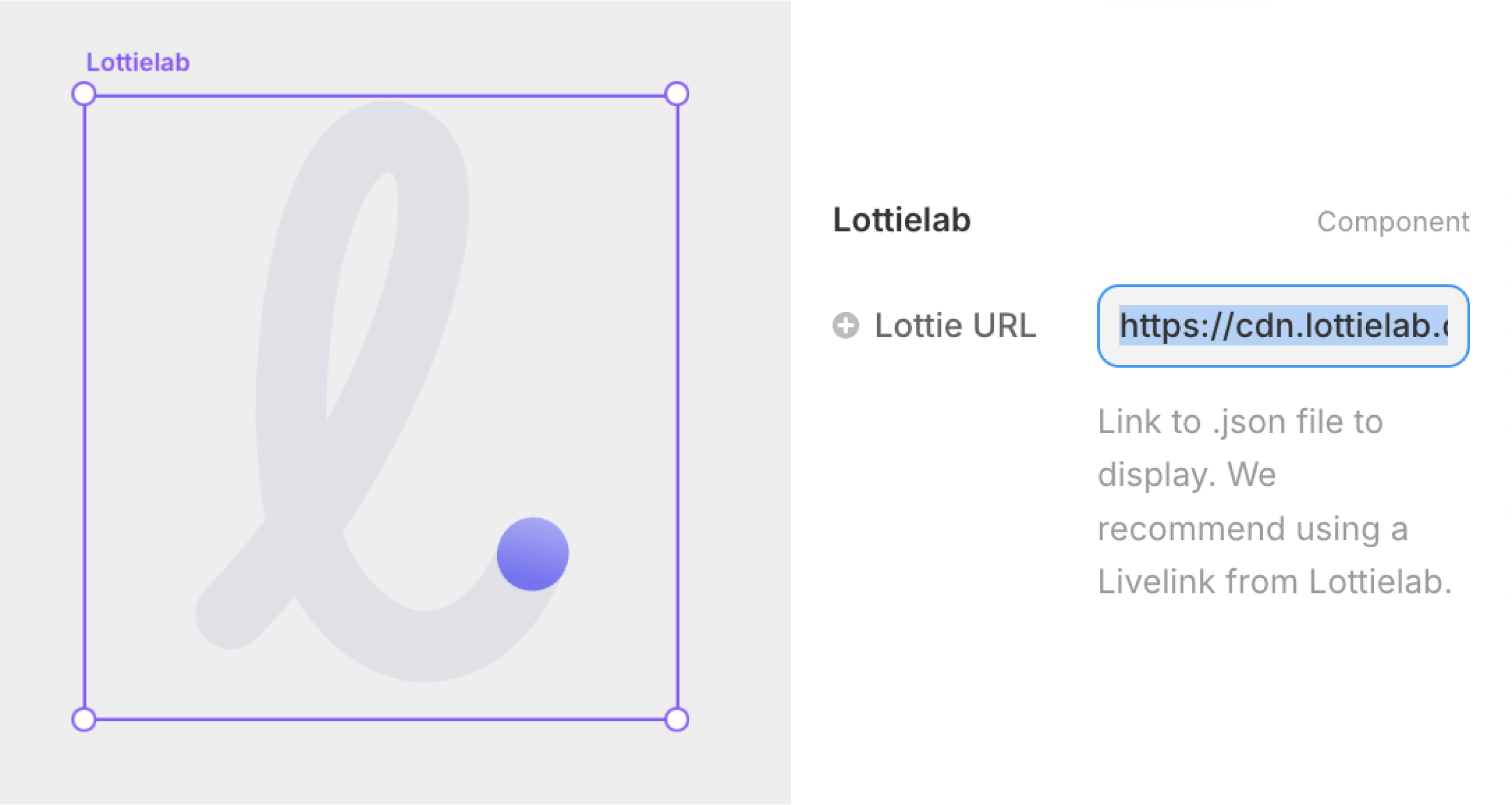

Pasted the component in Framer and selected the component then pasting in the JSON URL
